How to Create a Virtual Machine in VMware ESXi 6.5

How to Create a Virtual Machine in VMware ESXi 6.5
1
(1)

If we want to have a general definition of a virtual machine, we must say that it is a software, which simulates and creates a physical computer for us. A VM, like a dedicated server, has Cpu, Ram, Hard Disk, but virtually. After creating a virtual machine, you can install and use any type of operating system or application. In this article, we try to teach you How to Create a Virtual Machine in VMware ESXi 6.5. You can also visit the packages available in Eldernode to purchase a dedicated server.

Tutorial Create a Virtual Machine in VMware ESXi 6.5

In the rest of this article, we will teach you how to create a virtual machine in VMware ESXi 6.5 in three steps. It should be noted that the prerequisites for this training is An ISO Image. Please be with us.

Recommended Article: How to change ESXi hostname in 5 different ways

Create a Virtual Machine in VMware ESXi 6.5

As explained earlier, ESXi is an operating system installed on a set of enterprise servers. ESXi is powered by VMKernel and manages virtual machines for communication. In order to install a virtual machine on ESXi, it is enough to perform the following steps in order.

How to upload ISO in VMware ESXi 6.5

Before starting work, you should make sure that you can install the operating system on the virtual machine. It should be noted that ESXi makes it easy for users to achieve direct ISO loading.

In the first step, you must click on the Storage option from the Navigator panel.

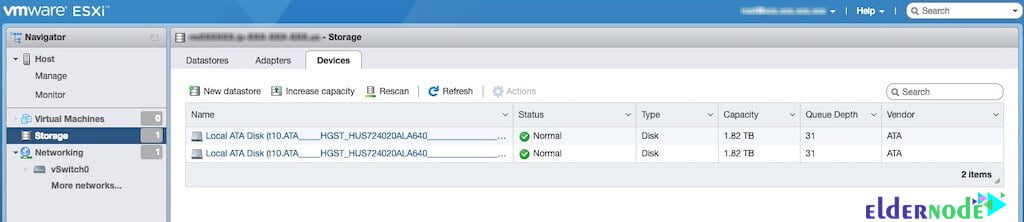

storage tab settings to create vm in esxi



Then in the next step you have to click on the Datastores tab to be able to select the data center. Using this data center, you will be able to save your ISO.



datastore settings to create vm in esxi 6.5



To determine the location to save the ISO file, you must click on the Datastore browser button. Then you have to click on Upload and select Next and click. Note that your ISO loading time depends on parameters such as ISO size and network speed. In the next step, we will teach you how to create a virtual machine in ESXi.



how to upload iso in esxi 6.5



How to create a VM in VMware ESXi 6.5

Once you have successfully completed the ISO load, you will need to proceed with creating the VM in ESXi. So to create a virtual machine in VMware ESXi 6.5 in the first step you have to click on Virtual Machines as shown in the image below from the Navigator panel.

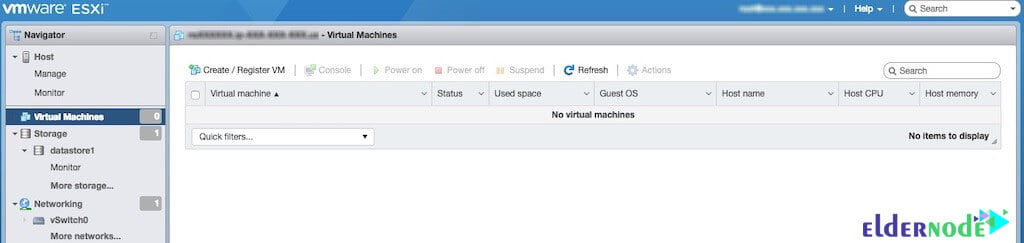

virtual machines settings in esxi 6.5



Then you have to click on the Create/Register VM button in the next step. As you can see in the image below, you must click on Create a new virtual machine on the right side of the page and then click Next.

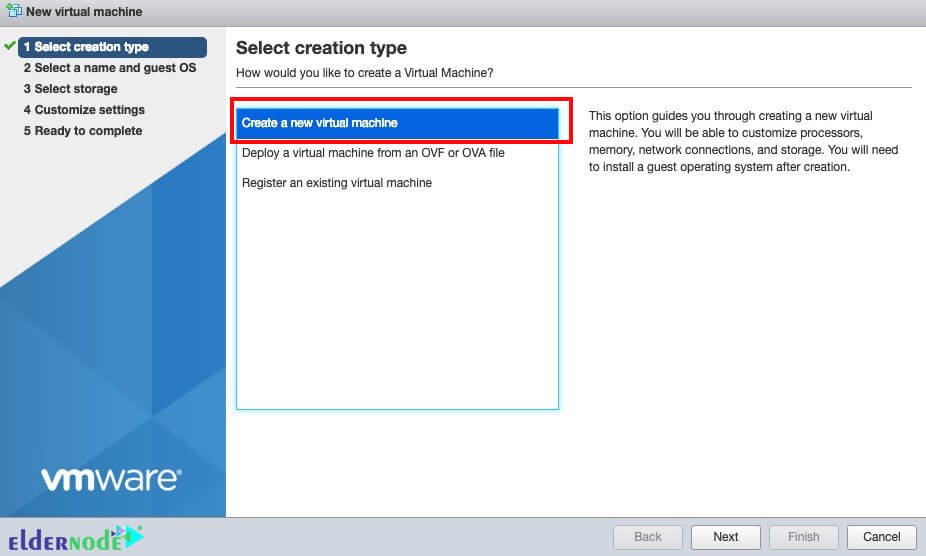

how to create virtual machine in esxi



The next section is about Select a name and guest OS. As you can see in this section you have to choose a name for your virtual machine. You also need to enter the relevant information for installation and finally click on Next.



how to create second vm in esxi 6.5



After completing the information and selecting the operating system in the previous step, it is time to select the datastore to store the virtual machine. After doing this, click on Next again. Next, you will enter the virtual hardware settings.



custom settings in esxi 6.5



It should be noted that you must choose your hardware settings to be sufficient for applications running by the virtual machine as well as the operating system. In the next step, you have to click on CD/DVD Drive 1 and then select the Datastore ISO file. This will allow you to download your ISO file.

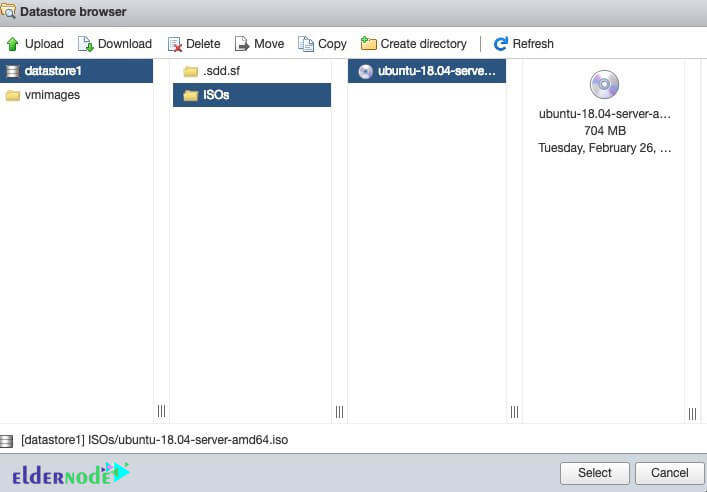

datastore browser in esxi 6.5



In the last step of this section, you must select the uploaded ISO file. Then click on Select. Now you need to go back to the custom settings page to browse and verify your virtual machine information. Finally, click on Finish to create a virtual machine to install the operating system on it.

How to install an OS in VMware ESXi 6.5

Note: Before starting the installation, we must remind you that the installation of the operating system varies depending on the operating system of your choice.

Once you have successfully completed the previous two steps, it is time to install on ESXi. To do this you need to click on Virtual Machines from the Navigator panel.



how to install os in vmware esxi 6.5



The next step is to select the virtual machine on which you must install the operating system you want. Finally you have to click the Power on button. By doing this and also following the operating system installation instructions, you will complete the steps of creating and installing a Virtual Machine in VMware ESXi 6.5.



How to Create a Virtual Machine in VMware ESXi 6.5



Recommended Article: How to Create a Virtual Machine in VMware ESXi 6.5

Conclusion

ESXi is the core virtualization application in vSphere. It is, in fact, a kind of operating system. Because during installation it is installed directly on the hardware and does not require a host operating system or host. This virtualizer is part of hostless applications and is very effective in speed and performance. ESXi is the latest version of the VMware Hypervisor software series, which actually allows you to build virtual machines and allocate resources to virtual machines. This management platform builds on hardware and system resources. In fact, the task of this program is to control and manage hardware resources among virtual machines. In this article, we tried to teach you how to create a Virtual Machine in VMware ESXi 6.5.
